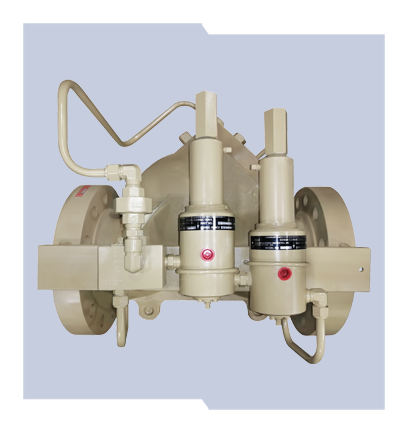

Series 700 External Pilot Operated Liquid Control Valves

Precise Flow Control of Petroleum Products

Precisely control the flow of liquid petroleum products with Daniel® Series 700 External Pilot Operated Control Valves that ensure positive sealing, smooth linear action and uniform speed of response. This versatile, cost-effective line enables a single valve body to be equipped with a variety of external pilots, allowing one valve to serve multiple functions. Unit-built construction allows all internal parts to be removed without interfering with the valve body or connections, simplifying maintenance and maximizing uptime.

Coming Soon:

Select
Size*
Configurator
Request a Quote

*By clicking you will be leave the Daniel® website and will be required to sign-in with your email address to enter the Emerson® sizing application.

Series 700 Control Valve Product Lines

Differential Pressure Flow ProductsDifferential Pressure Flow Products

Series 700
Control Valves

Coming Soon!
Line Size DN50 to DN400 (2-in to 16-in)
Fluid Type Liquid
Operating Temperature Range -29º C to +66º C (-20º F to +150º F)
Operating Pressure Range ANSI 150 to 600
Materials of Construction • Valve Body: Carbon Steel, ASTM A352 GR LCC
• Valve Cylinder: DN50 to DN 200 (2-in to 4-in): Stainless Steel, ANSI 150 to 600; DN250 to DN 400 (6-in to 16-in) Carbon Steel, Nickel Coated, ANSI 150 to 600
• Valve Piston: Standard: Stainless Steel
Materials of Construction • Seat Ring: DN50 to DN200 (2-in to 6-in) Stainless Steel; DN300 to DN400 (8-in to 16-in) Carbon Steel, Nickel Coated
• O-Rings: Standard: Viton; Optional: Neoprene, EPR, Viton, all Buna-N, Kalrez / Teflon AP (Aggressive Products)
  • Achieve precise flow rate and batch control with high-performance balanced piston principle, spring-biased design
  • Avoid damage due to shock pressure by adjusting closing speed; main piston ensures uniform opening and closing
  • Ensure smooth linear action with maximum flow and minimum pressure drop with high-capacity, 45º valve body
  • Control pressure from 10 to 1440 psi (60 to 9928 kPa) within ±2 psi (±13.8 kPa) of setpoint
  • Safeguard equipment and personnel with positive shutoff (ANSI Class VI) and fail-safe closure upon power loss
  • Improve reliability with positive O-ring seal and valve seats that are unaffected by fluid viscosity or pressure drop
  • Maximize uptime with all internal parts housed in a cartridge assembly; no need to remove the valve from the line
  • Minimize wear-related maintenance with a simple design featuring no diaphragms or stuffing boxes
Line Size DN50 to DN200 (2-in to 8-in)
Fluid Type Liquid
Operating Temperature Range -29º C to +66º C (-20º F to +150º F)
Operating Pressure Range ANSI 150 to 300
Materials: Valve Body Carbon Steel, ASTM A352 GR LCC
Materials: Valve Cylinder DN50 to DN 200 (2-in to 4-in): Stainless Steel, ANSI 150 to 600; DN250 to DN 300 (6-in to 8-in) Carbon Steel, Nickel Coated, ANSI 150 to 600
Materials: Valve Piston Standard: Stainless Steel
Materials: Seat Ring DN50 to DN200 (2-in to 6-in) Stainless Steel; DN300 (8-in) Carbon Steel, Nickel Coated
Materials: O-Rings Standard: Viton; Optional: Neoprene, EPR, Kalrez / Teflon AP (Aggressive Products)
